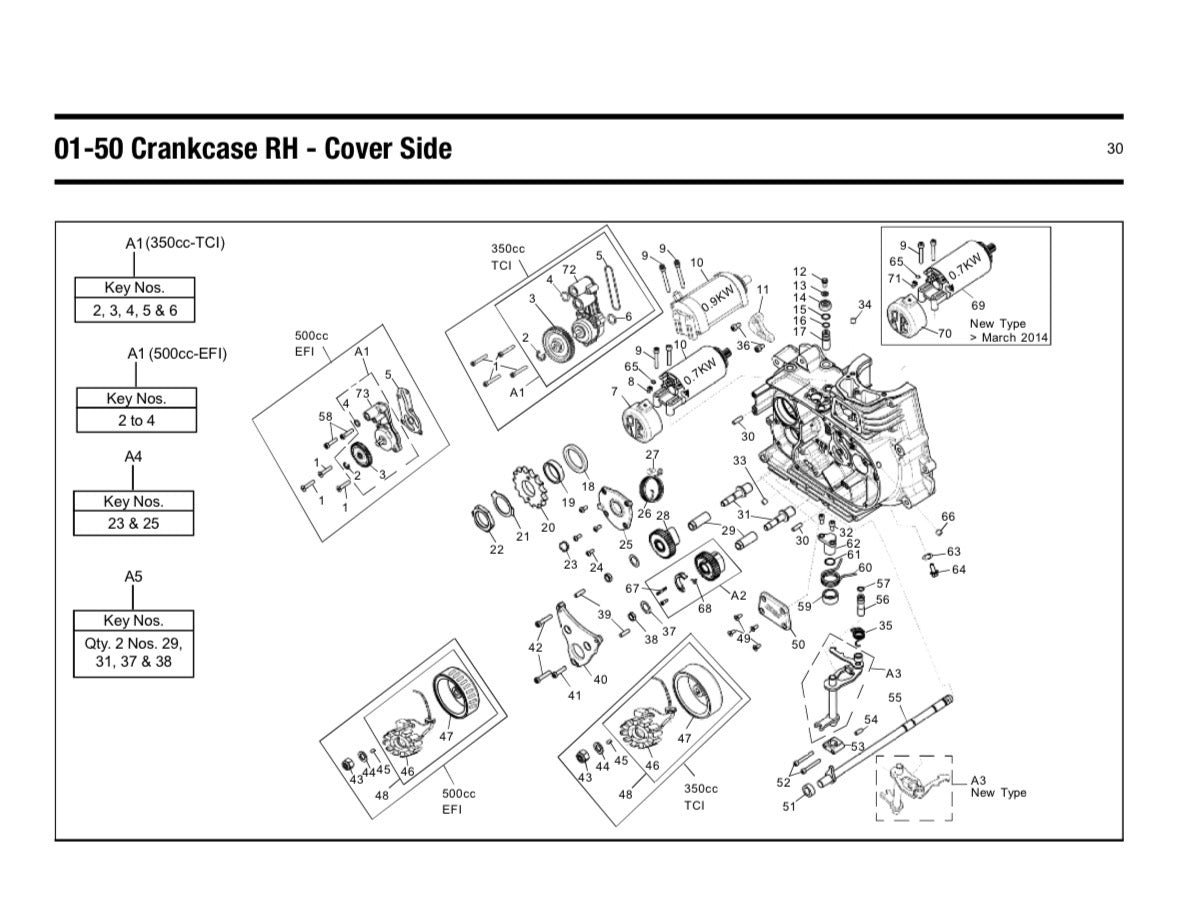

01-50 Crankcase RH - Cover Side

KEY

No.

 BULLET

350UCE(KS)

BULLET

350UCE(ES)

ELECTRA

350UCE(ES)

CLASSIC

350

CLASSIC

500 EFI

DESCRIPTION

QTY.

REMARKS

MOQ

Nos.

A1

570048/F

570048/F



570048/F

570048/F


Oil Pump Assembly








571047/D

Oil Pump Assembly



1

A2

570309/D

570309/D

570309/D

570309/D

570309/D

Cam Gear Assembly - Exhaust with Decompressor Assy.


SB 63-2014



570600/A


570600/A

570600A

570600/A

Gear Changer Assembly (Old Type)


< 2013


A3

570643/A

570643/A

570643/A

570643/A

570643/A

Gear Changer Assembly (New Type)


Anti Skip Mechanism, > Mar. 2013



A4 888104

888104

888104

888104

888104

Cover Kick Start with Oil Seal Kit





888179

888179

888179

888179

888179

Eccentric Cam Spindle Kit - STD





A5 888180

888180

888180

888180

888180

Eccentric Cam Spindle Kit - 1st O/S



1


888181

888181

888181

888181

888181

Eccentric Cam Spindle Kit - 2nd O/S

1


1


570051/B

| 570051/B

570051/B

570051/B


Hex. Socket HD. Cap Screw, M4 X 30

4

SB 58-2014

20

1





571155/A

CSK Socket HD. Cap Screw, M6 X 30

3

N.S., Old No. 570132/A

10

2

570052

570052

570052

570052

570052

Circlip - Oil Pump



14

3

571166/B

| 571166/B

571166/B

571166/B

571166/B

Pump Drive Pinion



2

4

570293

570293

570293

570293

570293

O' Ring, Oil Pump Outlet



5


570294/A

570294/A

570294/A

570294/A


'O' Ring, Oil Pump Base



10

5





571115/C

Gasket Oil Pump


For 500cc

10

6

570292

570292

570292

570292


'O Ring, Oil Pump Inlet



10




570812/A

570812/A


Cover Starter Motor end (Old Type)


Used with 580306/F, SB 72-2014

1

7





572012/A

Cover Starter Motor



1

8



570813/B 570813/B



Hex Socket, Button Head Screw, M5 X 12


Used with 580306/F, SB 72-2014

20




570302/A 570302/A



Hex Socket Head Cap Screw M6 X 35

2

For 350 CC

14






570303/A

Hex Socket Head Cap Screw M6 X 60

2

For 500 CC

14

10



580306/F

580306/F


Starter Motor Assembly UCE350 (Old Type)

(Modified commutator & brush)

1

SB-539, SB 72-2014

Used with 570812/A, 570813/B

1






| 560013

Starter Motor



1


01-50 Crankcase RH - Cover Side

KEY No.

BULLET

350UCE(KS)

BULLET

350UCE(ES)

ELECTRA

350UCE(ES)

CLASSIC

350

CLASSIC

500 EFI

DESCRIPTION

QTY.

REMARKS

MOQ

Nos.

11

859038





Stop Plate - Pivot Pin (Metallic Silver)

1

Alt. No. 570133/A

1

12

570481

570481

570481

570481

570481

Hex Flange Bolt M5 X 12



20

13

144636/A

144636/A

144636/A

144636/A

144636/A

Copper Washer



20

14

570468/B

570468/B

570468/B

570468/B

570468/B

Cap, Pivot Pin



1

15

146031/A

146031/A

146031/A

146031/A

| 146031/A

O' Ring - Cap Pivot Pin



14

16

550108

550108

550108

550108

550108

O' Ring - Rock Shaft Pivot



20

17

570218/C

570218/C

570218/C

570218/C

570218/C

Pivot, Cam plate



4

18

570213

570213

570213

570213

570213

Oil Seal

1


2

19

570214/F

570214/F

570214/5

570214/F

570214/F

Distance Piece




20

570254/C

570254/C

570254/C



FD Sprocket 15 Teeth


SB 26-2014





570809/A


FD Sprocket 16 Teeth for 350cc


SB 26-2014

1





571032/B

FD Sprocket 18 Teeth for 500cc


SB 26-2014

1

21

570247/D

570247/D

570247/D

570247/D

| 570247/D

Tab Washer




22

570246/E

570246/E

570246/E

570246/E

570246/E

Nut, Sleeve Gear



1

23

570241

570241

570241

570241

570241

Oil Seal Kick Starter G20 X 27 X 5 Double Lip



10

24

570300/C

570300/C

570300/C

570300/C

570300/C

Hex Socket Pan Head Screw M5 X 12

4

SB 72-2014

50

25






Cover, Kick Start Shaft - Buffied


Old Type, < 2013

1

884001

884001

884001

884001

884001

Cover, Kick Start Shaft (Shot Blasting)


New Type, >2014, SB 28-2014

1

26

146450/B

146450/B

146450/B

146450/B

146450/B

Spring Kick




27

570892/B

570892/B

570892/B

570892/B

570892/B

Flanged Hexagonal Bolt M6 X 1 X 16


Old No. 145090, SB 12-2013

20

28

571164/B

571164/B

571164/B

571164/B

571164/B

Cam, Gear - Inlet


SB 63-2014

1

29

570099/C

570099/C

570099/C

570099/C

| 570099/C

Cam Sleeve

2



30

570298/A 570298/A



570298/A 570298/A 570298/A


Dowel Pin

2


10


01-50 Crankcase RH - Cover Side

KEY

No.

BULLET

350UCE(KS)

BULLET

350UCE(ES)

ELECTRA

350UCE(ES)

CLASSIC

350

CLASSIC

500 EFI

DESCRIPTION

QTY.

REMARKS

MOQ

Nos.

31

570039/D

570039/D

570039/D

570039/D

570039/D

Cam Spindle Adjustable (Standard Size)

2

Modified Mtrl.

2

570040/C

570040/C

570040/C

570040/C

570040/C

Cam Spindle Adjustable (0.1 Oversize)

2


2


570041/C

570041/C

570041/C

570041/C

570041/C

Cam Spindle Adjustable (0.2 Oversize)

2


2

32

570304/B

570304/B

570304/฿

570304/B

570304/B

Hex. Socket Head Cap Screw, M6 X 16 SS

2

Modified, SB - 653

50

33

570102/D

570102/D

570102/D

570102/D

570102/D

Plug Dummy Hole

4

SB 24-2014

25

34






Restrictor (Lee Plug 1.8 MM) - RCC

1

SB 04-2013

10

35

570230/F

570230/5

570230/5

570230/F

570230/F

Spring, Gear Change Striker



10

36

570304/A

570304/A




Hex. Soc. Hd. Cap Screw M6 X 16

2


14

37

570280/B

570280/B(

570280/B

570280/B(

570280/B

Shim, Cam Gear

2


20

38

570100/B

570100/B

570100/B

570100/B

570100/B

Nut for Cam Spindle Adjuster

2


10

39

570298/A

570298/A

570298/A

570298/A

570298/A

Dowel 6 mm

2


10

40

570044/J

570044/J

570044/J

570044/J

570044/J

Cam Steady Plate

1


1

41

570132/A

570132/A

570132/A

570132/A

570132/A

Hex. Socket Head Cap Screw, M6 X 25

1


10

42

570421/A

570421/A

570421/A

570421/A

570421/A

Hex. Socket Head Cap Screw, M6 X 30

2


10

43

550025

550025

550025

550025

550025

Hex. Nut M12 X 1.25



10

44

586008/A

586008/A

586008/A

586008/A

586008/A

Plain Washer M12

1

SB - 687, Old No. 145708/A

14

45

502070/A

502070/A

502070/A

502070/A

502070/A

Magneto Key

1



570869/A





Stator and Pulser Coil Assy. (KS) - 1 Phase


5mm dia MTG holes, SB 14-2013



147055/A





Stator and Pulser Coil Assy. (KS) - 1 Phase


6mm dia MTG holes




570867/B

570867/B

570867/B


Stator and Pulser Coil Assy. (ES) - 3 Phase-350CC-TCI

1

ray pickup coil 5mm dia MTG hole

B-662. SB 14-2013, SPM-01]


46



592147/A

592147/A


Stator and Pulser Coil Assy. (ES) - 3 Phase-350CC-TCl

1

6mm dia MTG holes, SB - 662

1





570863/B

Stator and Pulser Coil Assy. (ES) - 3 Phase - 500CC-EFI

1

SB - 681, Black pickup coil 5mm dia MTG holes

1





591436/A

Stator and Pulser Coil Assembly (ES) - 3 Phase - 500CC-EFI

1

Gray pickup coil 6mm dia MTG holes


47

147063/A


147063/A

147063/A


Rotor UCE KS


Old Type

1

570606/A





Rotor and Reluctor Assembly


Old Type, SB - 652, 662

1

592237/A

592237/A

| 592237/A

592237/A


Rotor Assy. Flywheel Magneto

1

New Type, SB-662, SPM-012

1





571062/B

Rotor and Reluctor Assembly - 24T

1



592900/A





Fly Wheel Magneto Assembly - 1 Phase


6mm dia MTG holes, SB-617



592960/A





Fly Wheel Magneto Assembly - 1 Phase

1

5mm dia MTG holes

1




592221/A

|592221/A


Fly Wheel Magneto Assembly - 3 Phase-350CC-TCl


6mm dia MTG holes,

SB-596,662, SPM-012


48

































49



592125/A


Fly Wheel Magneto Assy. - 3 Phase-350CC-TCI (SB-662)

1

6mm dia MTG holes, SB-596,607

1


570866/B

570866/B

570866/B


Fly Wheel Magneto Assy. - 3 Phase-350CC-TCI

1

5mm dia MTG holes

1





572020/B

Fly Wheel Magneto Assy. - 3 Phase-500CC-EFI (Old Type) 1


6mm dia MTG holes






570862/B

Fly Wheel Magneto Assy. - 3 Phase - 500CC-EFI

1

5mm dia MTG holes, SB 14-2013

1

570198/C

570198/C

570198/C

570198/C

570198/C

CSK Socket Head Screw M5 X 0.8 X 12

4

SB - 586

20

50

570817/B

570817/B

570817/B

570817/B


Tappet Door (Buffed) - 350cc - New Type

1

Old No. 861053, SB - 631

1





572305/B

Tappet Door (500cc) - New Type


Old No. 861041

(Oldest No. 861018)

1

51

570184/B

570184/B

570184/B

570184/B

570184/B

Spacer - Shaft, Gear Lever

1


20

52

570233/B

570233/B

570233/B

570233/B

570233/B

Hex. Socket Head Cap Screw, M5 X 40

2

SB 57-2014

14

53

570231/H

570231/H

570231/H

570231/H

570231/H

Pivot Bearing, Rocker Shaft Bottom

1

SB 04-2013

20

54

570235/F

570235/F

570235/F

570235/F

570235/F

Dowel, Lower Pivot Bearing

1

SB 04-2013

50

55

570219/F

570219/F

570219/F

570219/F

570219/F

Assembly, Gear Lever Shaft



1

56

570229/D

570229/D

570229/D

570229/D

570229/D

Stop Pin



25

57

550256/A

550256/A

550256/A

550256/A

550256/A

'O' Ring


SB - 473

25

58








570132/A

Hex. Socket Head Cap Screw, M6 X 25






KEY
No.

BULLET

350UCE(KS)

BULLET

350UCE(ES)

ELECTRA

350UCE(ES)

CLASSIC

350

CLASSIC

500 EFI

DESCRIPTION

QTY.

REMARKS

MOO

Nos.

59

570227/F

570227/F

570227/5

570227/F

570227/F

Spacer

1



60

5500721B

5500721B

550072/B

550072/B

550072/B

Return Spring Gear Change

1



61

570234

570234

570234

570234

570234

'O' Ring Black Nitrile Rubber



ㅎ

62

861035

861035

861035

861035

861035

Pivot Bearing, Rocker Shaft Upper (Buffed)


Alt. No. 570228/G

5

63

144600/A

144600/A

144600/A

144600/A

144600/A

Copper Washer Tappet Cover - Oil Drain


Applicable > May 12

25

64

570713

570713

570713

570713

570713

Hex. Flanged M8 X 1.25 X 14

1

Applicable > May 12

10

65


580286/A

580286/A

580286/A


Grommet Rubber - Starter Cover MTG.



10


570723/A

570723/A

570723/A

570723/A

570723/A

Dummy Plug AVL

1

New Type, SB 24-2014

25

66

570102/D


570102/D

570102/D

570102/D

Plug Dummy Hole

1

Old Type, SB 24-2014

25


570110/F

570110/F

570110/F

570110/F

570110/F

Pin Assy. Ex. Cam 3.8 mm


To be used as per Old Pin


67

570543/C

| 570543/C

570543/C

570543/C

570543/C

Pin Assy. Ex. Cam 4.0 mm

1

dimension found in bike

SB 91-2014

2

68

570108/F

570108/F

570108/F

570108/F

570108/F

Torsion Spring (Auto Decompressor)

1


14

69


572617/A

572617/A

572617/A


Starter Motor - 0.7 KW UCE 350cc (New Type)


Used with 572616/A & 570300/C

SB 72-2014

1

70


572616/A

572616/A

572616/A


Starter Motor Cover


Used with 572617/A & 570300/C

SB 72-2014

1

71


570300/C

570300/C

570300/C

570300/C

Hex. Socket Button Head Screw, M5 X 12

1

Used with 572616/A & 572617/A

SB 72-2014

1

72

570777/A

570777/A

570777/A

570777/A


Oil Pump Sub Assembly - 350cc



1

73





570948/A

Oil Pump Sub Assembly - 500cc

0 comments

Leave a comment

Please note, comments need to be approved before they are published.
